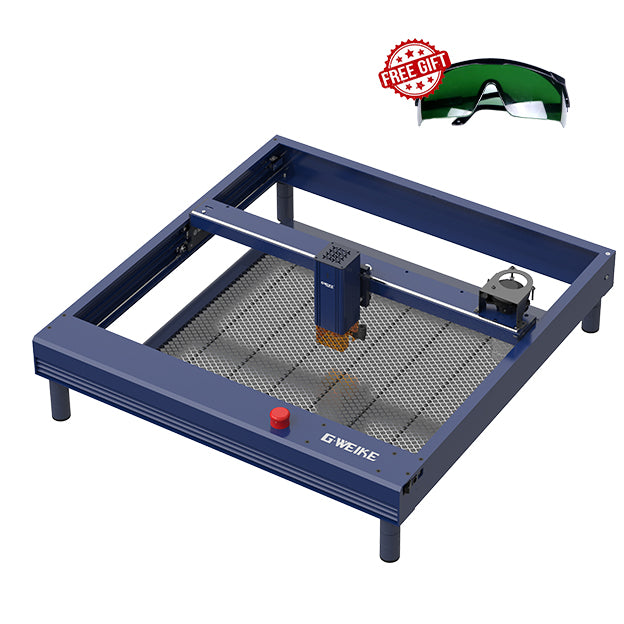

Free Gift with Every Order & Huge Holiday Savings
G1 emerges as a combination of compatibility and efficiency, aiming to save money and time.
The layout, editing, and control software for common laser cutter. Engraving file format supports NC, BMP, JPG, PNG, DXF, etc.
Features
Videos

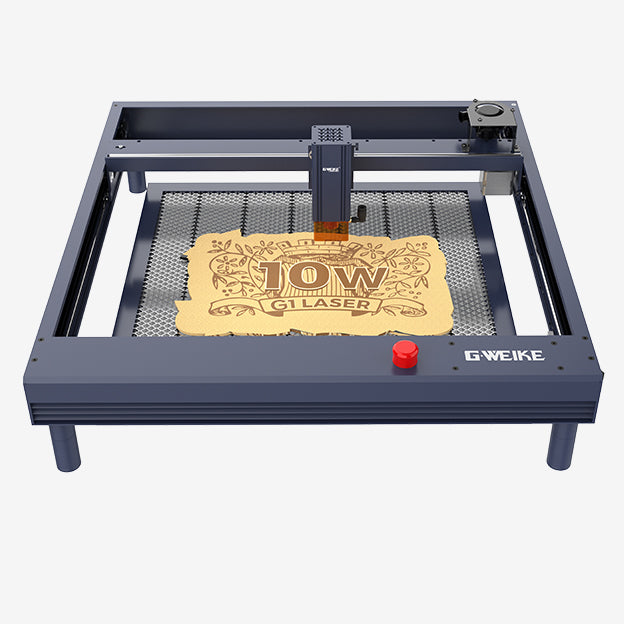

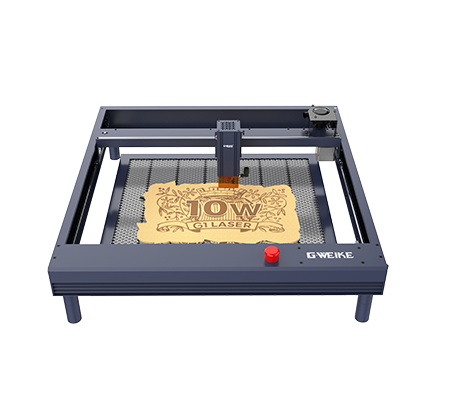

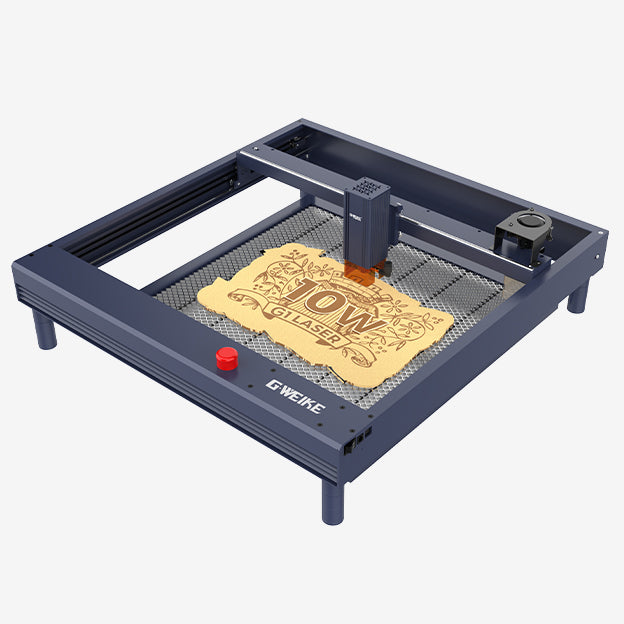

gweike G1 10W laser cutter& engraver
gweike G1 10W laser cutter& engraver
Regular price
$149.00
Sale price
$149.00
Regular price
Unit price
per
Payments:
Couldn't load pickup availability

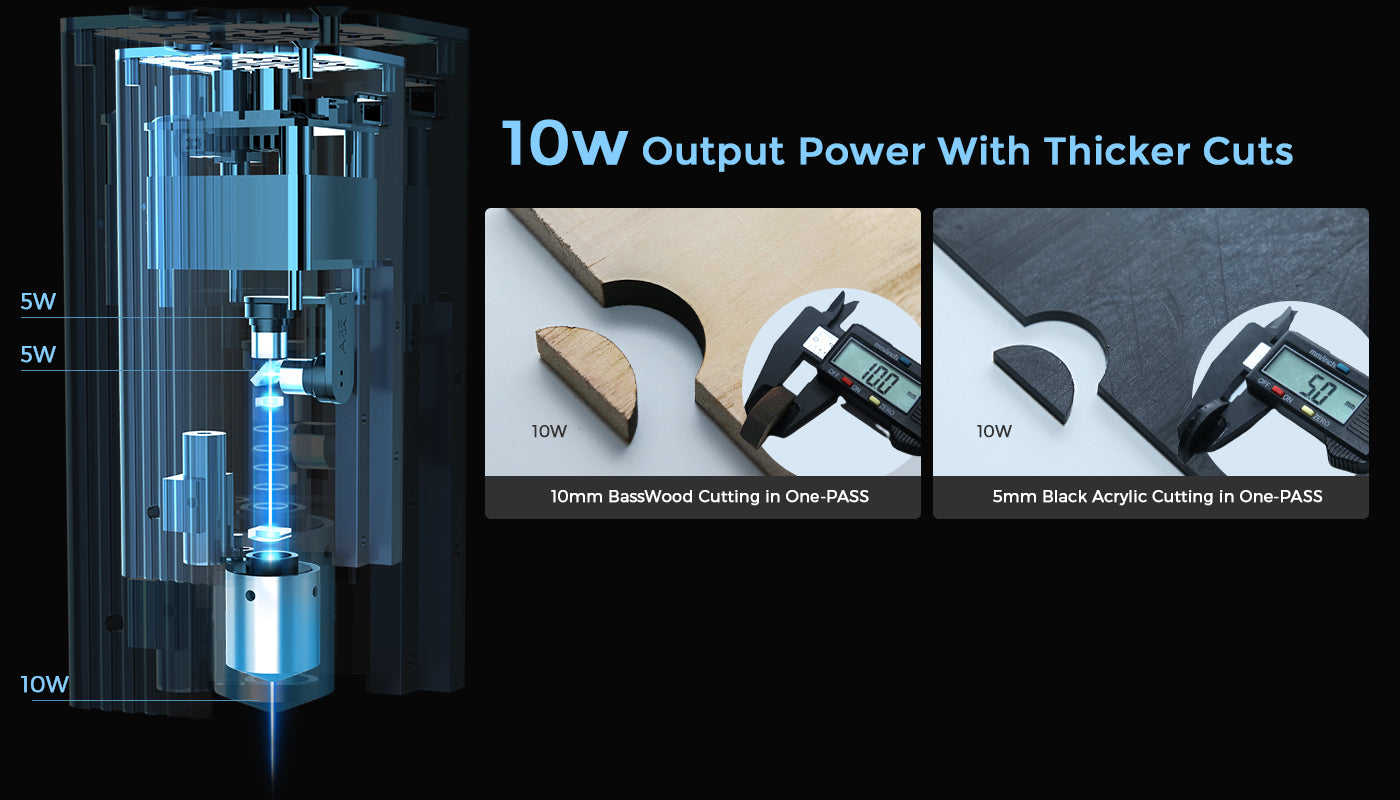

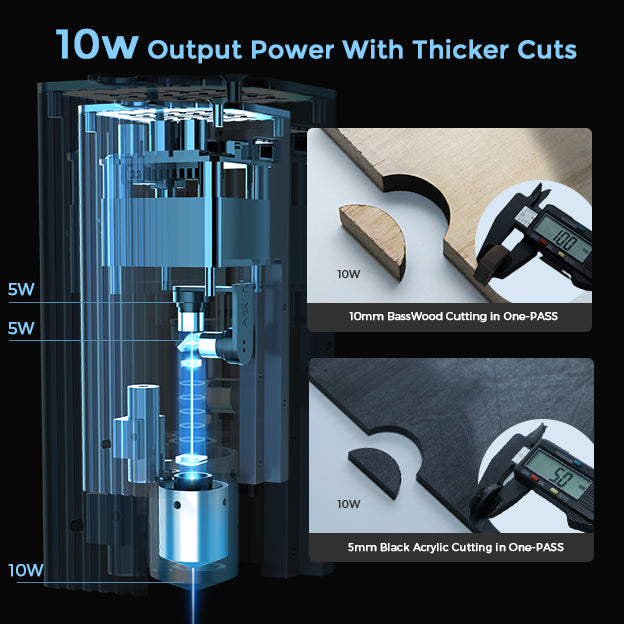

- 10W Output Power
- 400mm/s Speed
- Simple & Industrial Structure
- Lightburn Compatible
- Super Air Assist

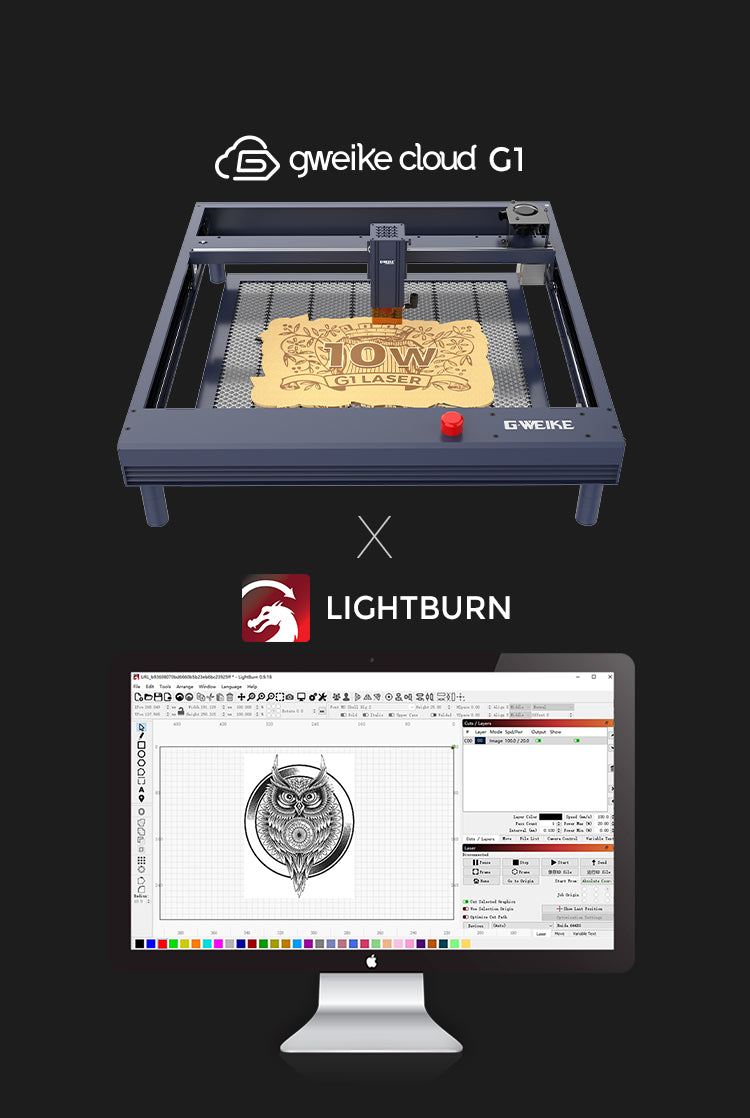

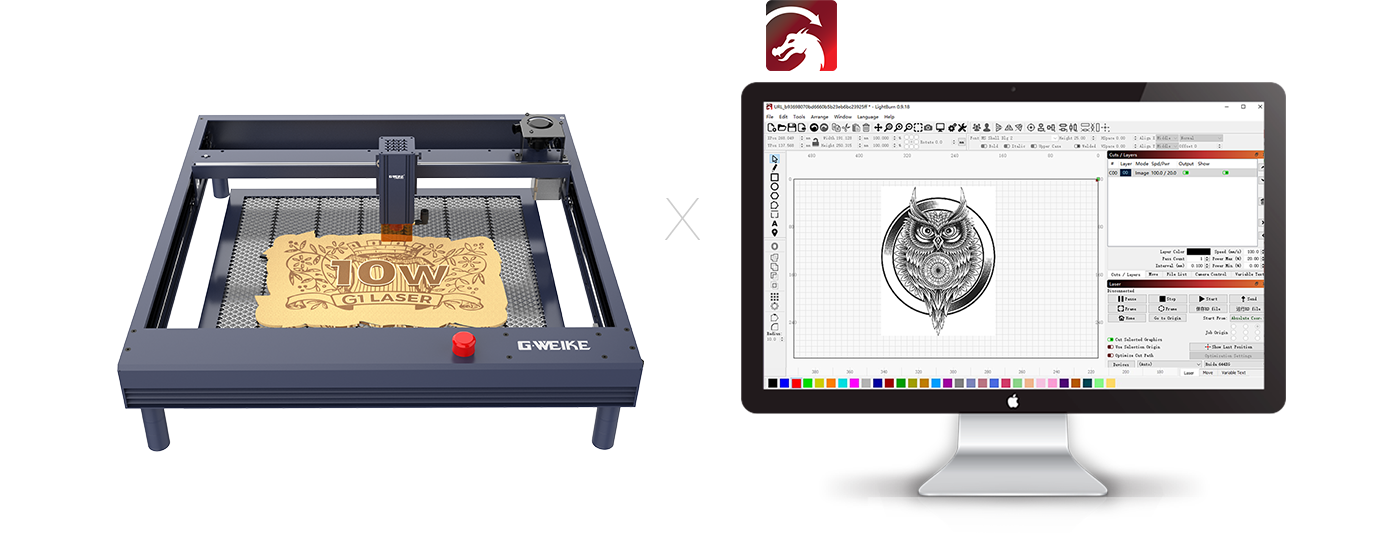

#gweike cloud × Lightburn Compatibility
400mm/s
Be a speed understander, not a speed reader.
G1 Laser 10W
7Min
Material: Basswood
Power: 50%
Speed: 400 mm/s
Others
10Min
Material: Basswood
Power: 50%
Speed: 300 mm/s
#gweike cloud × Accuracy
Reaches 0.01mm Precision.

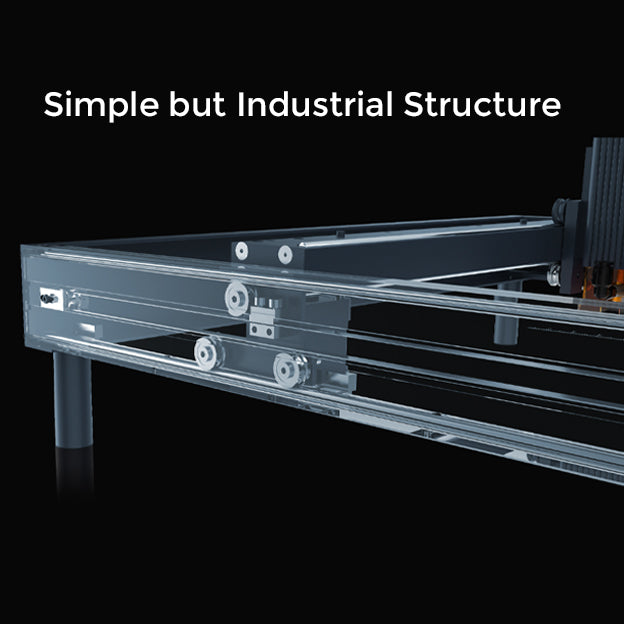

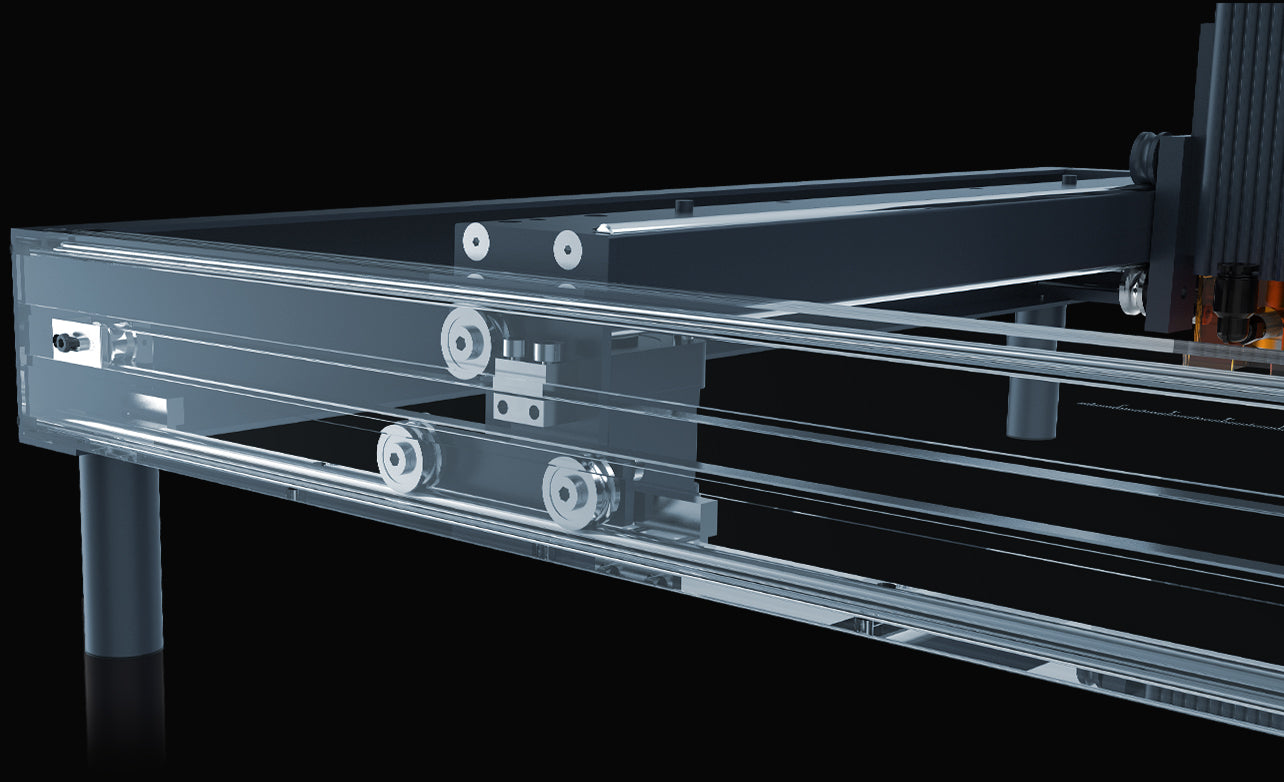

Simple & Industrial Structure
- Super light aluminum alloy frame with excellent thermoplasticity, anodizing effect and corrosion resistance
- High positioning accuracy with 2GT timing belt
- High-speed rail optical shaft slot wheel, fast running and easy maintenance

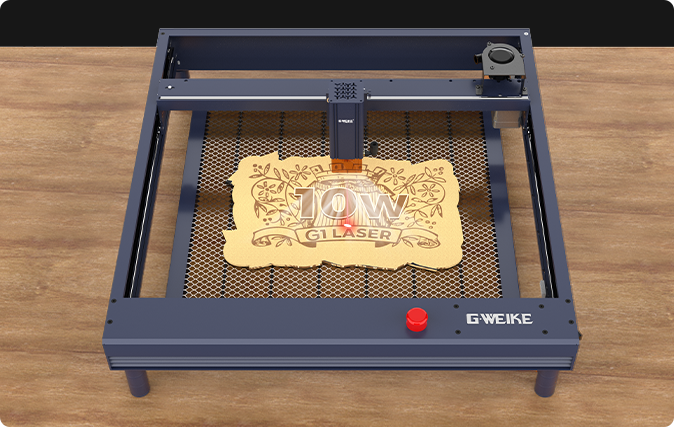

#gweike cloud × Safety
Gyroscope - the emergency stop will be triggered by any tipping when processing.
Radiationproof Goggles
Eyes protection & lightweight & comfortable wrap-around

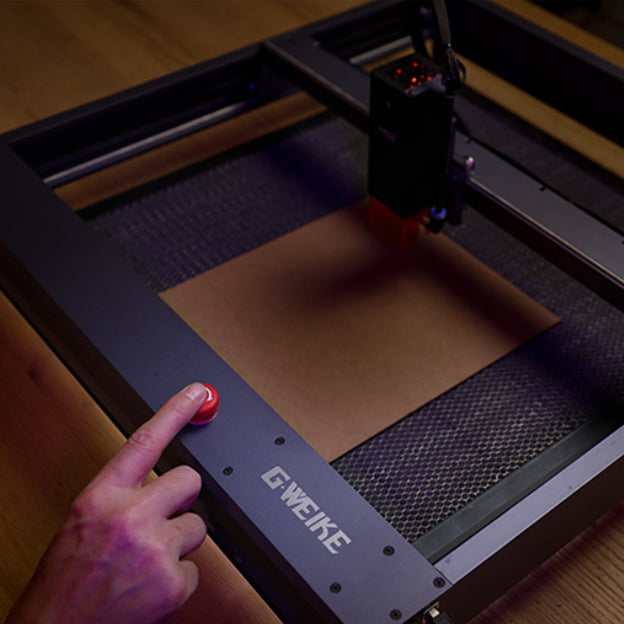

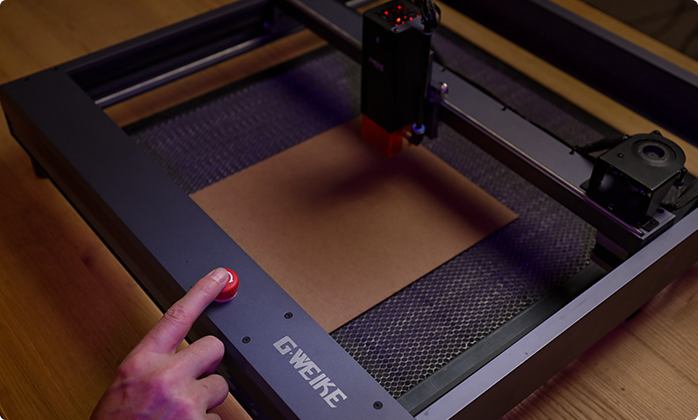

Emergency Stop Button
One-touch stop to prevent any injury or damage when processing
-

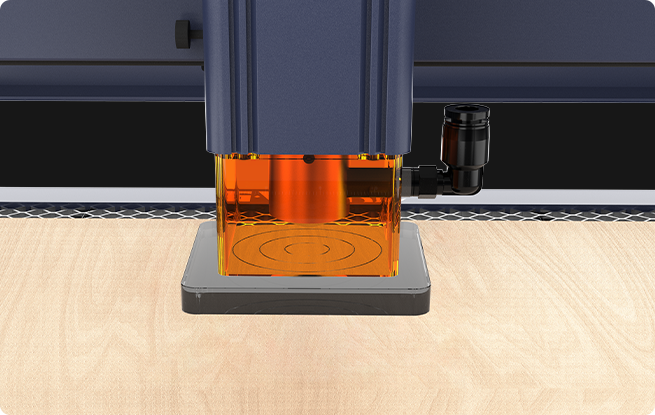

#gweike cloud × Focusing
Easy focus with a focus block
-

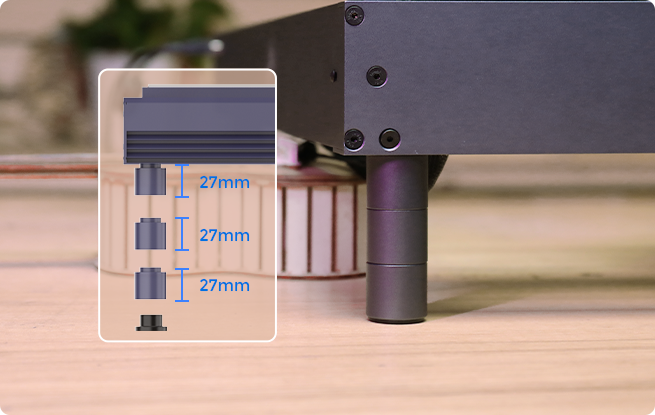

#gweike cloud × Risers
Equipped with set of risers to engrave larger projects.

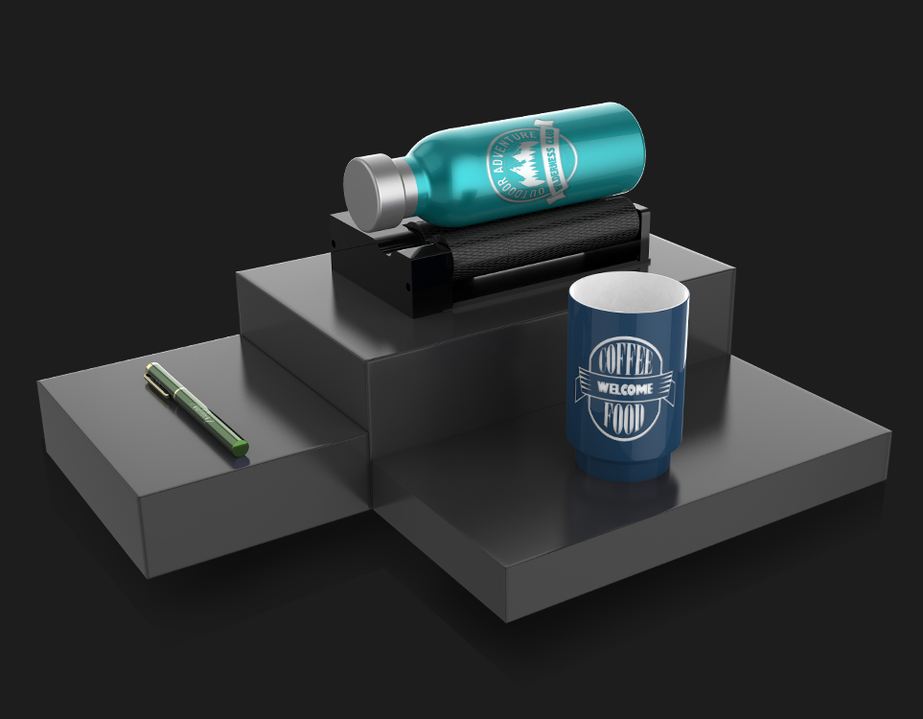

#gweike cloud × Rotation
G1 versatile rotary attachment works perfectly with cylindrical objects.
What G1 Can Do
- Plywood
- Acrylic
- Paper
- Leather
- Rock
- Coating Metal

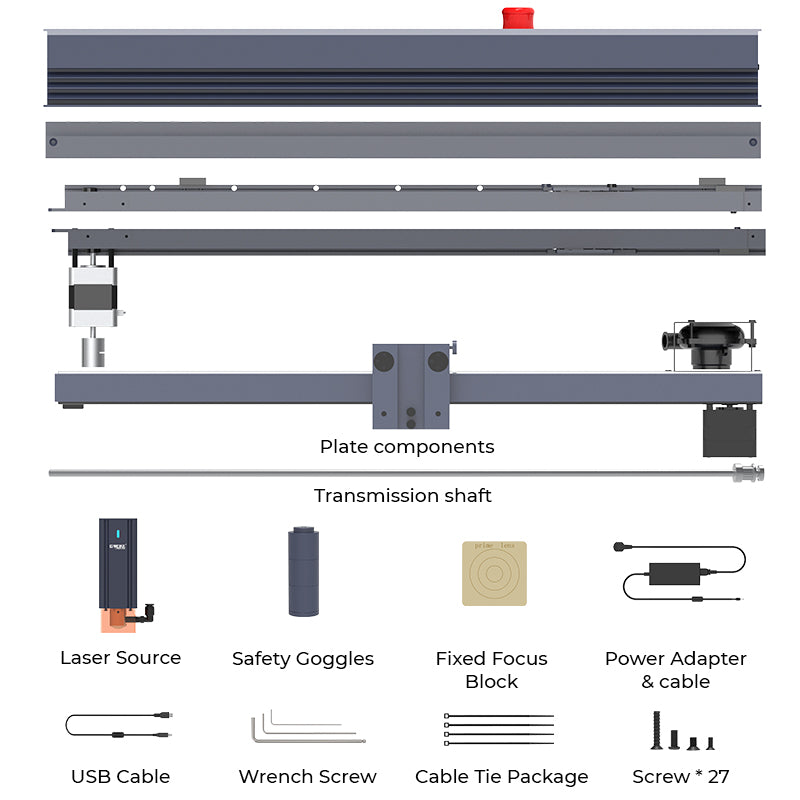

gweike cloud G1 unboxing
Specs Summary
- Tech Specs
- Material Cuts
- Material Engraves
| Model specification | G1 |
|---|---|
| Machine Power |
120W |
| Laser Module Output Power |
10W |
| Laser Wavelength |
450nm |
| Laser Spot |
0.08mm*0.06mm |
| Overall Machine Size | 613*590*160mm |
| Machine Weight |
6.6KG |
| Engraving Range |
410mm*310mm |
| Engraving Accuracy |
0.01mm |
| Engraving Speed |
400mm/s |
| Connection Method |
USB |
| Support File Format | *.ai *.pdf *.sc *.dxf *.hpgl *.plt *.rd *.scpro2 *.svg *.lbrn *.lbrn2 *.bmp *.jpg *.jpeg *.png *.gif *.tif *.tiff *.tga |
| Support System |
Mac/Windows/Linux |
| Control Software |
Lightburn |
| Input Power | 120w24v5A |
| Material | Thickness | Cutting | ||
|---|---|---|---|---|
| Power | Speed | Pass | ||
| Basswood | 3mm | 100% | 5mm/s | 1 |
| Black Acrylic | 3mm | 100% | 5mm/s | 1 |
| Black Acrylic | 5mm | 100% | 2mm/s | 1 |
| Corrugated Paper | 2mm | 90% | 5mm/s | 1 |
| Corrugated Paper | 5mm | 95% | 3mm/s | 1 |
| Corrugated Paper | 6mm | 100% | 2mm/s | 1 |
| Corrugated Paper | 8mm | × | ||
| Aluminum Business Card (Black Layer) | 0.2mm | × | ||
| Aluminum Business Card (Blue Layer) | 0.2mm | × | ||
| Aluminum Business Card (Pink Layer) | 0.2mm | × | ||
| Aluminum Business Card (Gold Layer) | 0.2mm | × | ||
| Rock Slabs | × | × | ||
| Paperboard | 0.5mm | 85% | 30mm/s | 1 |
| Felt Fabric | 2mm | 75% | 15mm/s | 1 |
| Leather | 1.5mm | 90% | 2mm/s | 1 |
| MDF | 2mm | 97% | 2mm/s | 3 |
| Rubber | 3mm | × | ||
| Brown Paper | 1mm | 85% | 30mm/s | 1 |
| Paulownia Planks | 10mm | 100% | 2mm/s | 2 |
| Paulownia Planks | 3mm | 90% | 4mm/s | 1 |
| Paulownia Planks | 6mm | 100% | 2mm/s | 1 |
| Pinewood | 5mm | 98% | 2mm/s | 1 |
| Cherry | 2mm | 90% | 5mm/s | 1 |
| Cherry | 3mm | 100% | 3mm/s | 1 |
| Safflower Pear | 2mm | 100% | 3mm/s | 1 |
| Safflower Pear | 3mm | 100% | 2mm/s | 1 |
| Beech | 2mm | 100% | 3mm/s | 1 |
| Beech | 3.5mm | 100% | 2mm/s | 1 |
| Walnut | 2mm | 100% | 3mm/s | 1 |
| Material | Thickness | Image Engraving | Vectorgraph Engraving | ||||
|---|---|---|---|---|---|---|---|
| Power | Speed | Pass | Power | Speed | Pass | ||
| Basswood | 3mm | 75% | 100mm/s | 1 | 75% | 100mm/s | 1 |
| Black Acrylic | 3mm | 30% | 100mm/s | 1 | 30% | 100mm/s | 1 |
| Black Acrylic | 5mm | 30% | 100mm/s | 1 | 30% | 100mm/s | 1 |
| Corrugated Paper | 2mm | 50% | 100mm/s | 1 | 50% | 100mm/s | 1 |
| Corrugated Paper | 5mm | 50% | 100mm/s | 1 | 50% | 100mm/s | 1 |
| Corrugated Paper | 6mm | 50% | 100mm/s | 1 | 50% | 100mm/s | 1 |
| Corrugated Paper | 8mm | 50% | 100mm/s | 1 | 50% | 100mm/s | 1 |
| Aluminum Business Card (Black Layer) | 0.2mm | 30% | 100mm/s | 1 | 30% | 100mm/s | 1 |
| Aluminum Business Card (Blue Layer) | 0.2mm | 45% | 100mm/s | 1 | 45% | 100mm/s | 1 |
| Aluminum Business Card (Pink Layer) | 0.2mm | 45% | 100mm/s | 1 | 45% | 100mm/s | 1 |
| Aluminum Business Card (Gold Layer) | 0.2mm | 45% | 100mm/s | 1 | 45% | 100mm/s | 1 |
| Rock Slabs | × | 75% | 30mm/s | 1 | 75% | 30mm/s | 1 |
| Paperboard | 0.5mm | 20% | 100mm/s | 1 | 20% | 100mm/s | 1 |
| Felt Fabric | 2mm | × | × | ||||
| Leather | 1.5mm | 50% | 100mm/s | 1 | 50% | 100mm/s | 1 |
| MDF | 2mm | 85% | 50mm/s | 1 | 85% | 50mm/s | 1 |
| Rubber | 3mm | 75% | 30mm/s | 1 | 75% | 30mm/s | 1 |
| Brown Paper | 1mm | 20% | 100mm/s | 1 | 20% | 100mm/s | 1 |
| Paulownia Planks | 10mm | 75% | 100mm/s | 1 | 75% | 100mm/s | 1 |
| Paulownia Planks | 3mm | 75% | 100mm/s | 1 | 75% | 100mm/s | 1 |
| Paulownia Planks | 6mm | 75% | 100mm/s | 1 | 75% | 100mm/s | 1 |
| Pinewood | 5mm | 75% | 100mm/s | 1 | 75% | 100mm/s | 1 |
| Cherry | 2mm | 75% | 100mm/s | 1 | 75% | 100mm/s | 1 |
| Cherry | 3mm | 75% | 100mm/s | 1 | 75% | 100mm/s | 1 |
| Safflower Pear | 2mm | 75% | 100mm/s | 1 | 75% | 100mm/s | 1 |
| Safflower Pear | 3mm | 75% | 100mm/s | 1 | 75% | 100mm/s | 1 |
| Beech | 2mm | 75% | 100mm/s | 1 | 75% | 100mm/s | 1 |
| Beech | 3.5mm | 75% | 100mm/s | 1 | 75% | 100mm/s | 1 |
| Walnut | 2mm | 85% | 50mm/s | 1 | 85% | 50mm/s | 1 |
FAQ
With 450nm blue laser and 10W output power, G1 can cut and engrave opaque acrylics, wood, leather, corrugated paper, plastic, metal business cards, cardboard, stone, stainless steel and more.
Yes, it will soon
1 year
No, only USB
It will come soon.
No, they require additional purchases.
